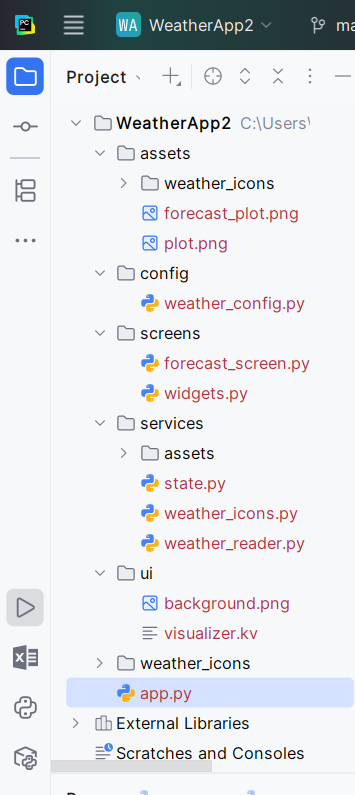

wetter_app/
│
├── app.py
│
├── screens/
│   ├── forecast_screen.py
│   └── widgets.py
│
├── services/
│   ├── weather_reader.py
│   ├── weather_icons.py
│   └── state.py
│
├── ui/
│   └── visualizer.kv
│
├── assets/
│   ├── weather_icons/
│   └── forecast_plot.png
│
└── config/
    └── weather_config.py

API_KEY = "DEIN_API_KEY_HIER"
CITY = "Weinstadt"
LANG = "de"
UNITS = "metric"

class AppState:
    def __init__(self):
        self.city = "Weinstadt"

import requests
from pathlib import Path

ICON_DIR = Path("assets/weather_icons")
ICON_DIR.mkdir(parents=True, exist_ok=True)

def download_icon(icon_code: str) -> Path:
    path = ICON_DIR / f"{icon_code}.png"

    if path.exists():
        return path

    url = f"https://openweathermap.org/img/wn/{icon_code}@4x.png"
    response = requests.get(url)

    if response.status_code == 200:
        path.write_bytes(response.content)

    return path

import requests
from config.weather_config import API_KEY, CITY, LANG, UNITS


def fetch_current_weather():
    """
    Ruft das aktuelle Wetter ab.
    Liefert alle wichtigen Werte:
    Temperatur, gefühlte Temperatur, Luftfeuchtigkeit, Druck,
    Windgeschwindigkeit, Windrichtung, Bewölkung, Beschreibung.
    """
    url = (
        "https://api.openweathermap.org/data/2.5/weather"
        f"?q={CITY}&appid={API_KEY}&units={UNITS}&lang={LANG}"
    )
    data = requests.get(url).json()

    # Fehlerfall (z. B. ungültiger API-Key)
    if "main" not in data:
        return {
            "temperature": 0,
            "feels_like": 0,
            "humidity": 0,
            "pressure": 0,
            "wind_speed": 0,
            "wind_deg": 0,
            "clouds": 0,
            "description": data.get("message", "Keine Daten"),
        }

    return {
        "temperature": data["main"]["temp"],
        "feels_like": data["main"]["feels_like"],
        "humidity": data["main"]["humidity"],
        "pressure": data["main"]["pressure"],
        "wind_speed": data["wind"]["speed"],
        "wind_deg": data["wind"].get("deg", 0),
        "clouds": data["clouds"]["all"],
        "description": data["weather"][0]["description"],
    }


def fetch_forecast():
    """
    Ruft die 5-Tage-Vorhersage ab (3h-Intervalle).
    Liefert pro Eintrag:
    Temperatur, gefühlte Temperatur, Luftfeuchtigkeit, Druck,
    Windgeschwindigkeit, Windrichtung, Regen, Schnee, Bewölkung, Icon.
    """
    url = (
        "https://api.openweathermap.org/data/2.5/forecast"
        f"?q={CITY}&appid={API_KEY}&units={UNITS}&lang={LANG}"
    )
    data = requests.get(url).json()

    if "list" not in data:
        return []

    forecast = []
    for entry in data["list"]:
        rain = entry.get("rain", {}).get("3h", 0)
        snow = entry.get("snow", {}).get("3h", 0)

        forecast.append({
            "timestamp": entry["dt_txt"],

            "temperature": entry["main"]["temp"],
            "feels_like": entry["main"]["feels_like"],
            "humidity": entry["main"]["humidity"],
            "pressure": entry["main"]["pressure"],

            "wind_speed": entry["wind"]["speed"],
            "wind_deg": entry["wind"].get("deg", 0),

            "rain": rain,
            "snow": snow,

            "clouds": entry["clouds"]["all"],
            "icon": entry["weather"][0]["icon"],
        })

    return forecast

from kivy.uix.boxlayout import BoxLayout
from kivy.properties import StringProperty

class DayWidget(BoxLayout):
    date = StringProperty("")
    min_temp = StringProperty("")
    max_temp = StringProperty("")
    icon_source = StringProperty("")

from kivy.uix.screenmanager import Screen
from kivy.clock import Clock
from kivy.app import App
from services.weather_reader import fetch_current_weather, fetch_forecast
from services.weather_icons import download_icon
from screens.widgets import DayWidget
import matplotlib.pyplot as plt
from pathlib import Path
from collections import defaultdict


class ForecastScreen(Screen):

    reload_event = None

    def on_enter(self):
        """Wird aufgerufen, wenn der Screen sichtbar wird."""
        self.load_data()
        self.reload_event = Clock.schedule_interval(self.load_data, 600)

    def on_leave(self):
        """Auto-Reload stoppen, wenn der Screen verlassen wird."""
        if self.reload_event:
            self.reload_event.cancel()

    def load_data(self, *args):
        """Lädt aktuelle Daten + Vorhersage und aktualisiert das UI."""
        self.load_current_weather()
        forecast = fetch_forecast()
        self.forecast_data = forecast
        self.build_day_widgets(forecast)
        self.update_chart("Temperatur")

    def load_current_weather(self):
        """Aktuelle Wetterdaten in die UI schreiben."""
        current = fetch_current_weather()

        self.ids.temp_label_forecast.text = f"{current['temperature']:.1f} °C"
        self.ids.hum_label_forecast.text = f"{current['humidity']} %"
        self.ids.desc_label_forecast.text = current["description"]
        self.ids.wind_label.text = f"Wind: {current['wind_speed']} m/s"
        self.ids.clouds_label.text = f"Wolken: {current['clouds']} %"

    def build_day_widgets(self, forecast):
        """
        Erstellt die Tageskacheln.
        Aggregiert Min/Max Temperatur und wählt ein repräsentatives Icon.
        """
        days = defaultdict(list)
        for entry in forecast:
            day = entry["timestamp"].split(" ")[0]
            days[day].append(entry)

        self.ids.days_box.clear_widgets()

        for day, entries in list(days.items())[:5]:
            temps = [e["temperature"] for e in entries]
            min_temp = min(temps)
            max_temp = max(temps)

            # Icon wählen: Mittagswert bevorzugt
            icon = None
            for e in entries:
                if "12:00" in e["timestamp"]:
                    icon = e["icon"]
                    break
            if not icon:
                icon = entries[0]["icon"]

            icon_path = download_icon(icon)

            self.ids.days_box.add_widget(
                DayWidget(
                    date=day[5:],
                    min_temp=f"{min_temp:.1f} °C",
                    max_temp=f"{max_temp:.1f} °C",
                    icon_source=str(icon_path),
                )
            )

    def update_chart(self, selection):
        """Wird vom Dropdown ausgelöst und erzeugt das passende Diagramm."""
        if not hasattr(self, "forecast_data"):
            return
        self.plot_chart(self.forecast_data, selection)

    def plot_chart(self, forecast, mode):
        """
        Zentrales Diagramm-Modul.
        Erzeugt je nach Modus ein Linien- oder Balkendiagramm.
        """
        timestamps = [f["timestamp"][5:16] for f in forecast]

        if mode == "Temperatur":
            values = [f["temperature"] for f in forecast]
            color = "red"
            ylabel = "Temperatur (°C)"
            plot_type = "line"

        elif mode == "Wind":
            values = [f["wind_speed"] for f in forecast]
            color = "green"
            ylabel = "Wind (m/s)"
            plot_type = "line"

        elif mode == "Regen":
            values = [f["rain"] for f in forecast]
            color = "blue"
            ylabel = "Regen (mm)"
            plot_type = "bar"

        elif mode == "Bewölkung":
            values = [f["clouds"] for f in forecast]
            color = "gray"
            ylabel = "Bewölkung (%)"
            plot_type = "line"

        fig, ax = plt.subplots(figsize=(6, 3), dpi=100)

        if plot_type == "line":
            ax.plot(timestamps, values, color=color)
        else:
            ax.bar(timestamps, values, color=color, alpha=0.5)

        ax.set_ylabel(ylabel, color=color)
        ax.tick_params(axis="y", labelcolor=color)

        # X-Achse lesbar machen
        step = max(1, len(timestamps) // 6)
        ax.set_xticks(range(0, len(timestamps), step))
        ax.set_xticklabels(
            [timestamps[i] for i in range(0, len(timestamps), step)],
            rotation=45,
            ha="right",
            fontsize=7
        )

        fig.tight_layout()
        path = Path("assets/forecast_plot.png")
        fig.savefig(path)
        plt.close(fig)

        self.ids.plot_image_forecast.source = str(path)
        self.ids.plot_image_forecast.reload()

#:set BG_COLOR (0.388, 0.569, 0.659, 1)        # #6391A8
#:set BG_COLOR_DARK (0.30, 0.45, 0.52, 1)      # dunklere Variante

# -------------------------------------------------------------
# DayWidget – einzelne Tageskachel
# -------------------------------------------------------------
<DayWidget>:
    orientation: "vertical"
    size_hint_x: 0.2
    padding: 6
    spacing: 6

    canvas.before:
        Color:
            rgba: BG_COLOR_DARK
        RoundedRectangle:
            pos: self.pos
            size: self.size
            radius: [8]

    Image:
        source: root.icon_source
        allow_stretch: True
        keep_ratio: True
        size_hint_y: 0.55

    Label:
        text: root.date
        font_size: "14sp"
        color: 1, 1, 1, 1
        halign: "center"
        valign: "middle"
        text_size: self.size

    Label:
        text: root.min_temp + " / " + root.max_temp
        font_size: "14sp"
        color: 1, 1, 1, 1
        halign: "center"
        valign: "middle"
        text_size: self.size



# -------------------------------------------------------------
# ForecastScreen – Hauptscreen der Wetter-App
# -------------------------------------------------------------

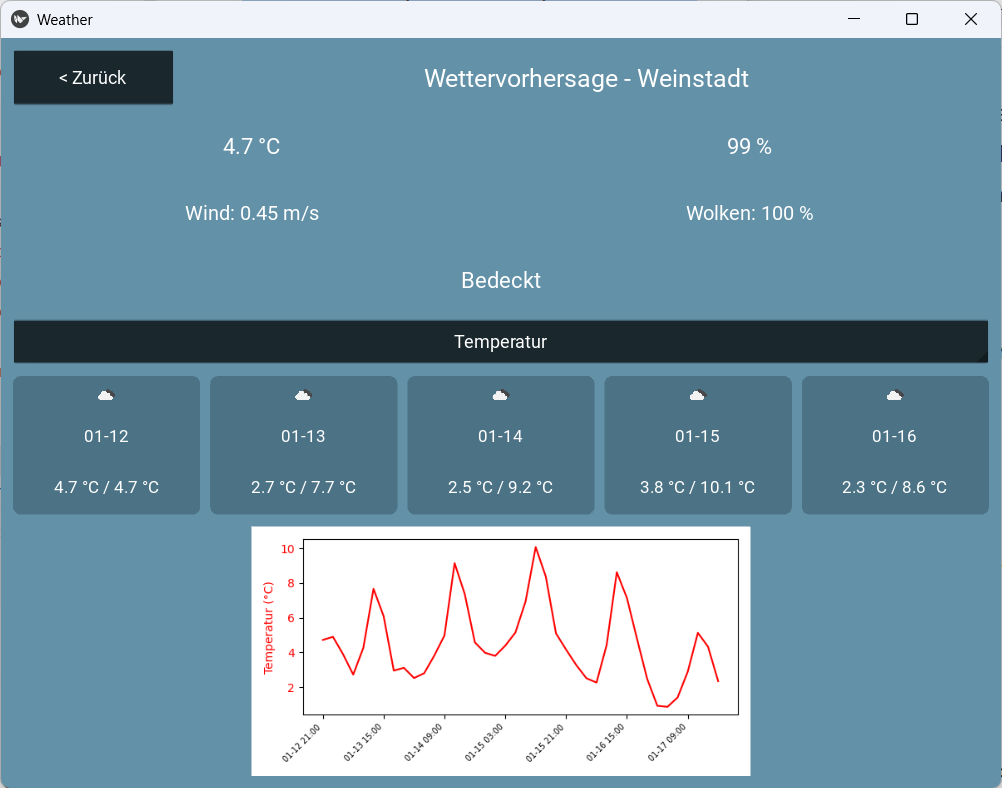

<ForecastScreen>:
    name: "forecast"

    canvas.before:
        Color:
            rgba: BG_COLOR
        Rectangle:
            pos: self.pos
            size: self.size

    BoxLayout:
        orientation: "vertical"
        padding: 12
        spacing: 12

        # -----------------------------------------------------
        # Kopfzeile
        # -----------------------------------------------------
        BoxLayout:
            size_hint_y: 0.1
            spacing: 10

            Button:
                text: "< Zurück"
                size_hint_x: 0.2
                background_color: BG_COLOR_DARK
                color: 1, 1, 1, 1
                on_release: root.manager.current = "start"

            Label:
                text: "Wettervorhersage - " + app.state.city
                font_size: "20sp"
                color: 1, 1, 1, 1


        # -----------------------------------------------------
        # Temperatur + Luftfeuchtigkeit
        # -----------------------------------------------------
        BoxLayout:
            orientation: "horizontal"
            size_hint_y: 0.1
            spacing: 20

            Label:
                id: temp_label_forecast
                text: "-- °C"
                font_size: "18sp"
                color: 1, 1, 1, 1

            Label:
                id: hum_label_forecast
                text: "-- %"
                font_size: "18sp"
                color: 1, 1, 1, 1


        # -----------------------------------------------------
        # Wind + Bewölkung
        # -----------------------------------------------------
        BoxLayout:
            orientation: "horizontal"
            size_hint_y: 0.1
            spacing: 20

            Label:
                id: wind_label
                text: "Wind: -- m/s"
                font_size: "16sp"
                color: 1, 1, 1, 1

            Label:
                id: clouds_label
                text: "Wolken: -- %"
                font_size: "16sp"
                color: 1, 1, 1, 1


        # -----------------------------------------------------
        # Beschreibung
        # -----------------------------------------------------
        Label:
            id: desc_label_forecast
            text: "--"
            font_size: "18sp"
            size_hint_y: 0.1
            color: 1, 1, 1, 1


        # -----------------------------------------------------
        # Diagramm-Auswahl
        # -----------------------------------------------------
        Spinner:
            id: chart_selector
            text: "Temperatur"
            values: ["Temperatur", "Wind", "Regen", "Bewölkung"]
            size_hint_y: 0.08
            background_color: BG_COLOR_DARK
            color: 1, 1, 1, 1
            on_text: root.update_chart(self.text)


        # -----------------------------------------------------
        # Tageskacheln
        # -----------------------------------------------------
        BoxLayout:
            id: days_box
            orientation: "horizontal"
            size_hint_y: 0.25
            spacing: 10


        # -----------------------------------------------------
        # Diagramm
        # -----------------------------------------------------
        Image:
            id: plot_image_forecast
            source: ""
            allow_stretch: True
            keep_ratio: True
            size_hint_y: 0.45

from kivy.app import App
from kivy.uix.screenmanager import ScreenManager
from kivy.lang import Builder
from services.state import AppState
from screens.forecast_screen import ForecastScreen
from screens.widgets import DayWidget

class RootWidget(ScreenManager):
    pass

class WeatherApp(App):
    def build(self):
        self.state = AppState()
        Builder.load_file("ui/visualizer.kv")
        root = RootWidget()
        root.add_widget(ForecastScreen(name="forecast"))
        return root

if __name__ == "__main__":
    WeatherApp().run()
